Λεπτομέρειες προϊόντων
Τόπος καταγωγής: Γκουανγκντόνγκ, Κίνα
Μάρκα: LINK-PP
Πιστοποίηση: RoHS, IEC 60825
Αριθμό μοντέλου: L9-FC554901-80PPC
Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min: 50/500/1000/25K
Τιμή: 12.98USD/PCS
Συσκευασία λεπτομέρειες: T & r
Χρόνος παράδοσης: Σε αποθεματικό πλοίο εντός 3 ημερών
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union
Δυνατότητα προσφοράς: 5KK/μήνα
Μοντέλο: |
L9-FC554901-80PPC |
Τύπος ινών: |
Fiber μονής λειτουργίας (9/125 μm) |
Τάση τροφοδοσίας: |
DC 5,5–26 V |
Απόσταση: |
≤ 80km |
Form Factor: |
1x9 |
Ρυθμός δεδομένων: |
100M/155M |
Μήκος κύματος: |
1550nm Tx/ 1490nm Rx |
Μοντέλο: |
L9-FC554901-80PPC |
Τύπος ινών: |
Fiber μονής λειτουργίας (9/125 μm) |
Τάση τροφοδοσίας: |
DC 5,5–26 V |
Απόσταση: |
≤ 80km |
Form Factor: |
1x9 |
Ρυθμός δεδομένων: |
100M/155M |
Μήκος κύματος: |
1550nm Tx/ 1490nm Rx |

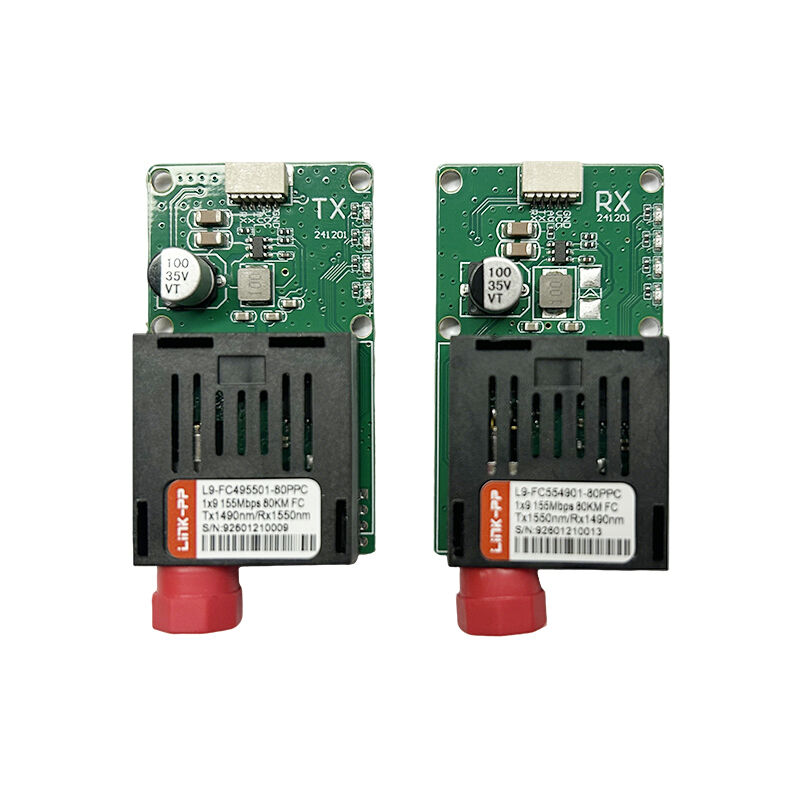

L9-FC554901-80PPC is a long-reach 1×9 form-factor optical transceiver designed for 155 Mbps single-fiber bi-directional optical transmission. The module operates at Tx 1550 nm / Rx 1490 nm, supports transmission distances of up to 80 km, and uses an FC optical connector for reliable long-distance single-mode fiber links.
With a wide DC input voltage range of 5.5-26 V and a TTL electrical interface, this transceiver is optimized for air-to-ground UAV optical links, FPV systems, single-fiber video converters, and serial data transmission over fiber.
| Category | Parameter | Specification |
|---|---|---|
| General | Part Number | L9-FC554901-80PPC |
| Vendor | LINK-PP | |
| Form Factor | 1×9 Optical Transceiver | |
| Application Type | TTL to Fiber Optical Transmission | |
| Max Data Rate | 155 Mbps (STM-1 / OC-3 Class) | |
| Fiber Type | Single-Mode Fiber (SMF, 9/125 µm) | |
| Optical | Transmitter Wavelength | 1550 nm |
| Receiver Wavelength | 1490 nm | |
| Electrical | Supply Voltage | DC 5.5 V - 26 V |
| Signal Interface | TTL | |
| Power Consumption | Refer to Official Datasheet | |
| Environmental | Operating Temperature | 0 °C to +70 °C (Standard) -40 °C to +85 °C (Industrial Option) |
| Storage Temperature | -40 °C to +85 °C | |
| Compliance | RoHS | Compliant |
| Laser Safety | IEC 60825 Compliant |
It is used for long-distance 155 Mbps TTL-to-fiber optical transmission, especially in UAV air-to-ground links, FPV systems, and industrial serial communication.
Yes. The wide DC 5.5-26 V input makes it suitable for UAV, vehicle, and ground station power supplies.
Yes. It is commonly used in single-fiber video and serial data fiber converter systems.
It uses an FC optical connector and single-mode fiber (9/125 µm).
