Λεπτομέρειες προϊόντων
Place of Origin: GuangDong, China
Μάρκα: LINK-PP
Πιστοποίηση: ISO9001,SGS,UL,CE,REACH
Model Number: HFJ14-1G01ER-L11RL
Όροι πληρωμής & ναυτιλίας
Minimum Order Quantity: 50/500/1000/25K
Τιμή: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Product Category: |
Multiport RJ45 Connector |
Ports Configuration: |
1x4 |
Shielding: |
Shielded |
Applications: |
10/100/1000 Base-T |
Mounting Type: |
Through Hole |
Operating Temperature: |
0-70℃ |
Termination Style: |
Solder |
LED L / R Color: |
Green / Green |
Pitch: |
2.54 mm |
Product Length: |
59.09 mm |
Product Category: |
Multiport RJ45 Connector |
Ports Configuration: |
1x4 |
Shielding: |
Shielded |
Applications: |
10/100/1000 Base-T |
Mounting Type: |
Through Hole |
Operating Temperature: |
0-70℃ |
Termination Style: |
Solder |
LED L / R Color: |
Green / Green |
Pitch: |
2.54 mm |
Product Length: |
59.09 mm |
Key Features of Gigabit RJ45 Multi Port Jack
★ Ethernet Compatibility: Supports Gigabit (10/100/1000) Ethernet, compliant with IEEE 802.3ab standards.
★ Inductance: 350µH minimum OCL at 8mA DC bias across the full temperature range.
★ Contact Plating: 30µ” gold plating (minimum) on contacts for reliable connectivity.
★ Testing: 100% compliance testing ensures consistent performance.
★ Hi-Pot: Withstands 1500Vrms hi-pot testing.
★ Environmental Compliance: Lead-Free and RoHS compliant.
★ Soldering: Compatible with lead-free wave soldering processes for through-hole components.
★ Durability: Rated for 1000 mating cycles.
★ Body Orientation: Right-angle design.
Materials of HFJ14-1G01ER-L11RL 1x4 RJ45 Fastjack with LEDs
ELECTRICAL SPECIFICATIONS @25°C
1. TURNS RATIO: 1:1 ±3%
2. OCL(100KHz,0.1V,8mADC) :350μH min
3. INSERTION LOSS
1-100MHz:-1.1dB max
4. RETURN LOSS
1-40MHz: -18dB min
6OMHz:-14dB min
80MHz:-12dB min
100MHz:-10dB min
5. CROSSTALK
1-100MHz:-35dB typ
6. CMR
0.1-30MHz:-50dB typ
30-60MHz:-40dBtyp
60-100MHz:-35dB typ
7. ISOLATION: 1,500Vrms

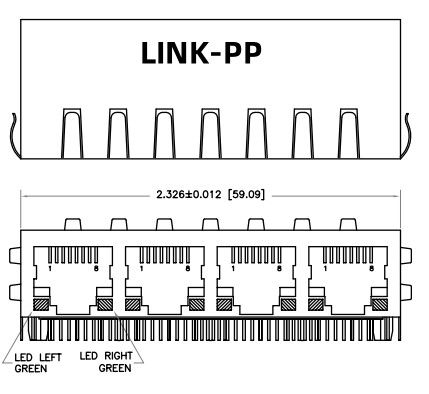

HFJ14-1G01ER-L11RL Drawing Electrical Schematic
